| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications

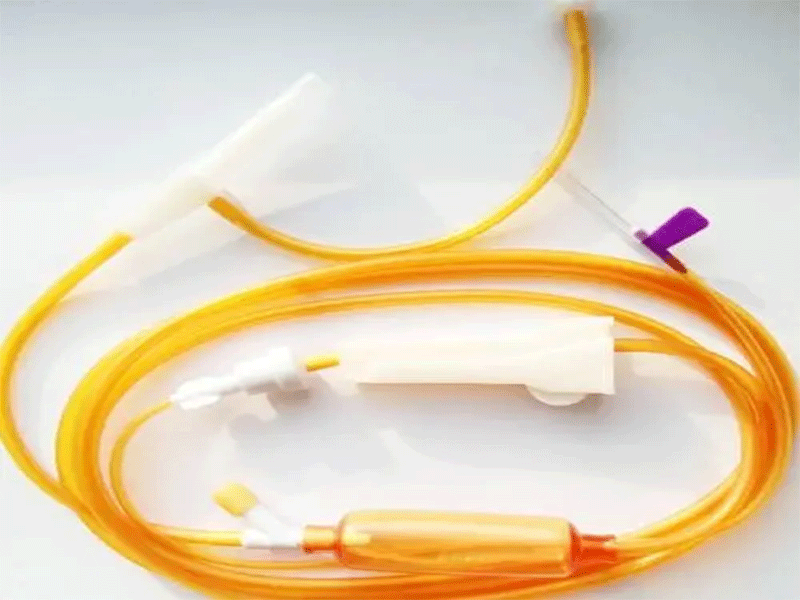

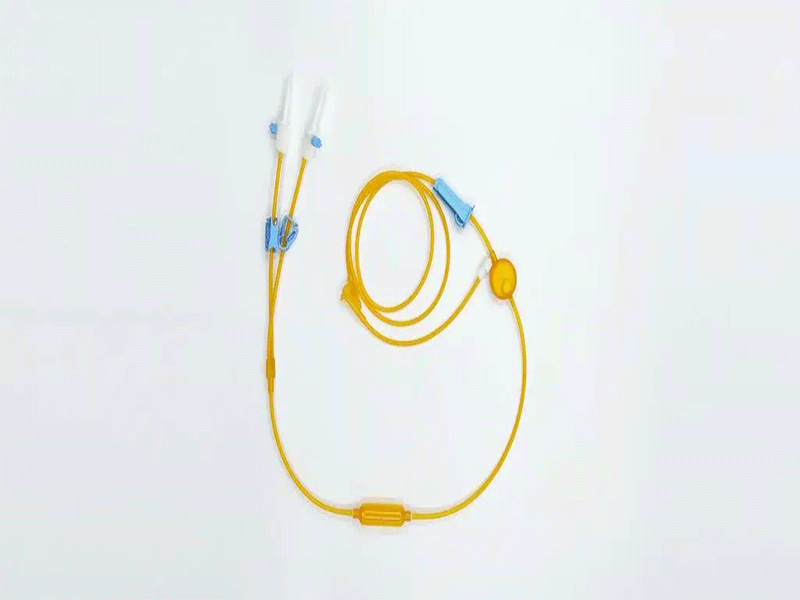

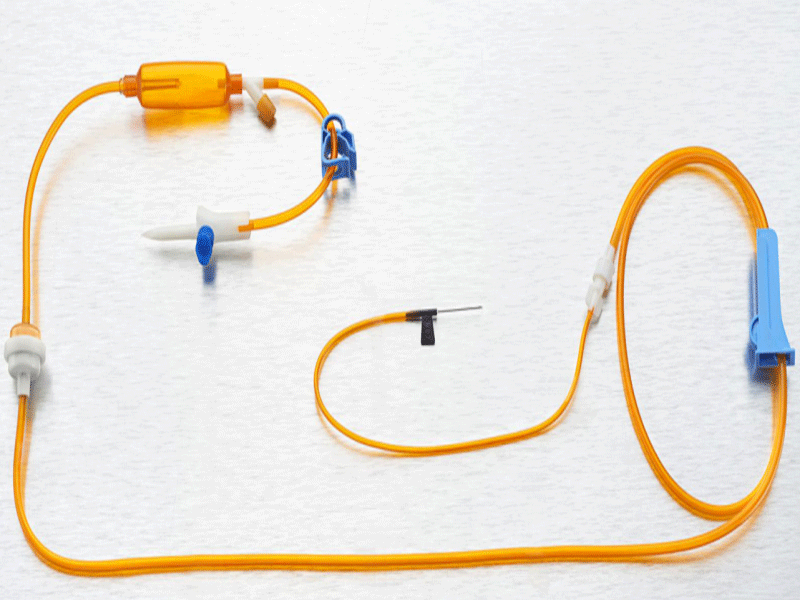

Medical light-proof infusion tube is a device used for infusion, care and protection. It has the characteristics of good light-proof performance, safety and reliability, convenient use and high-quality materials. It consists of infusion tubes, infusion sets, drip speed regulators, connectors, etc. It can be divided into single-channel and multi-channel types according to different needs. These characteristics and components make light-proof infusion lines play an important role in the infusion treatment process in medical institutions.
Description

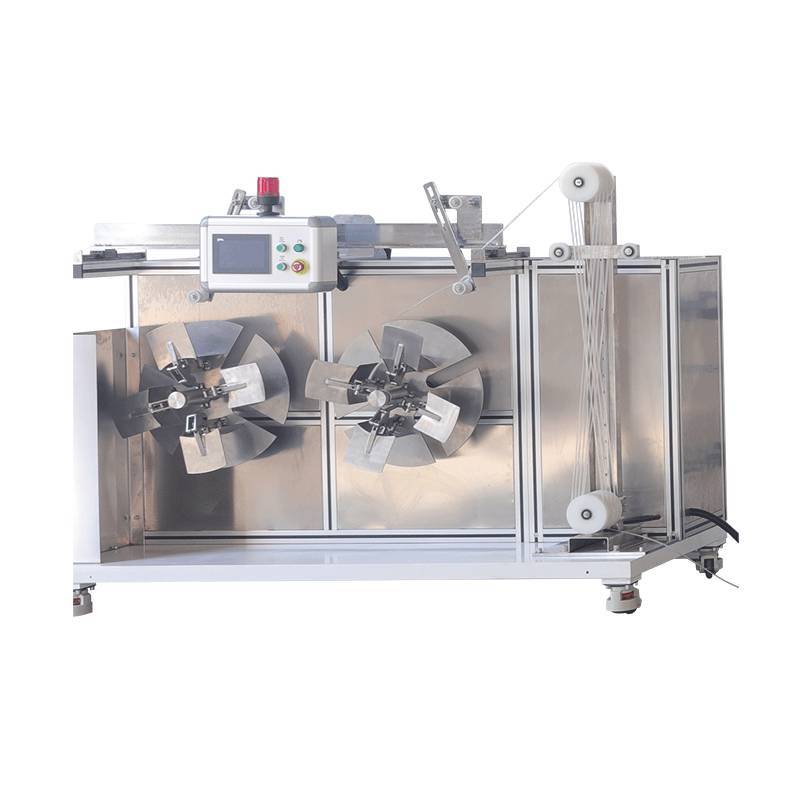

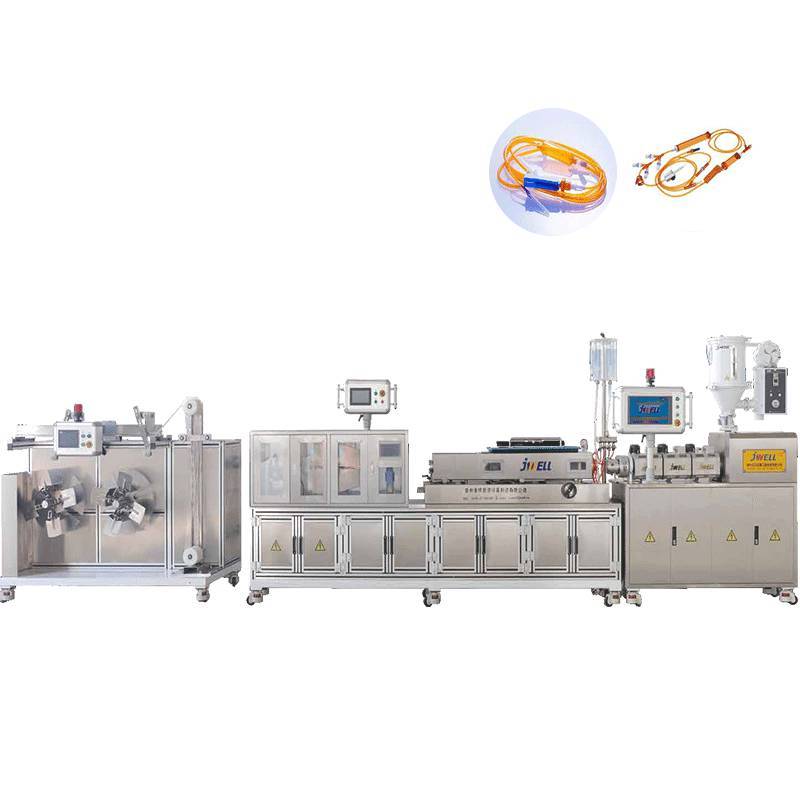

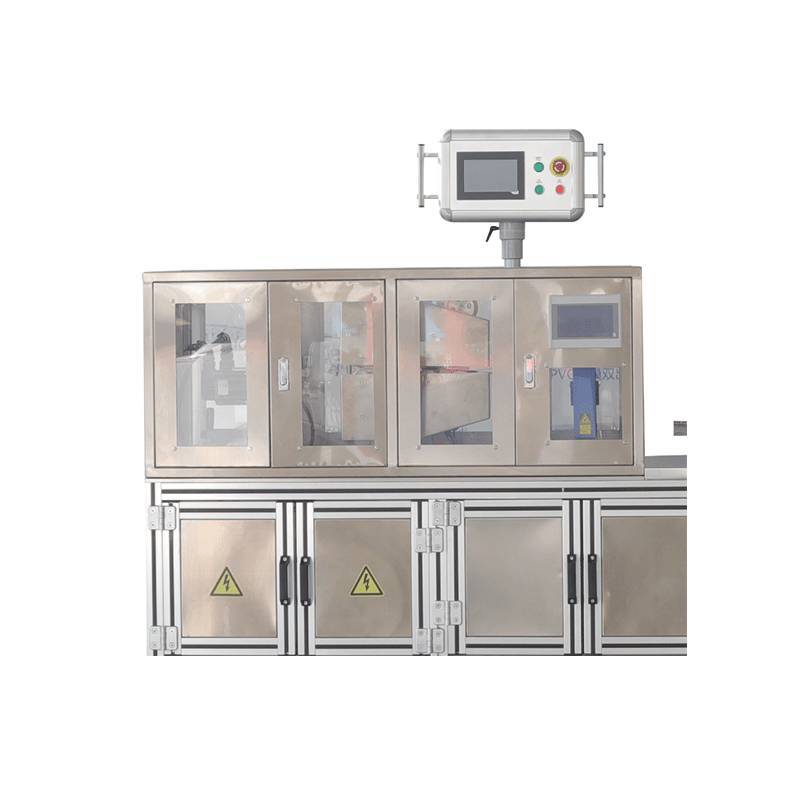

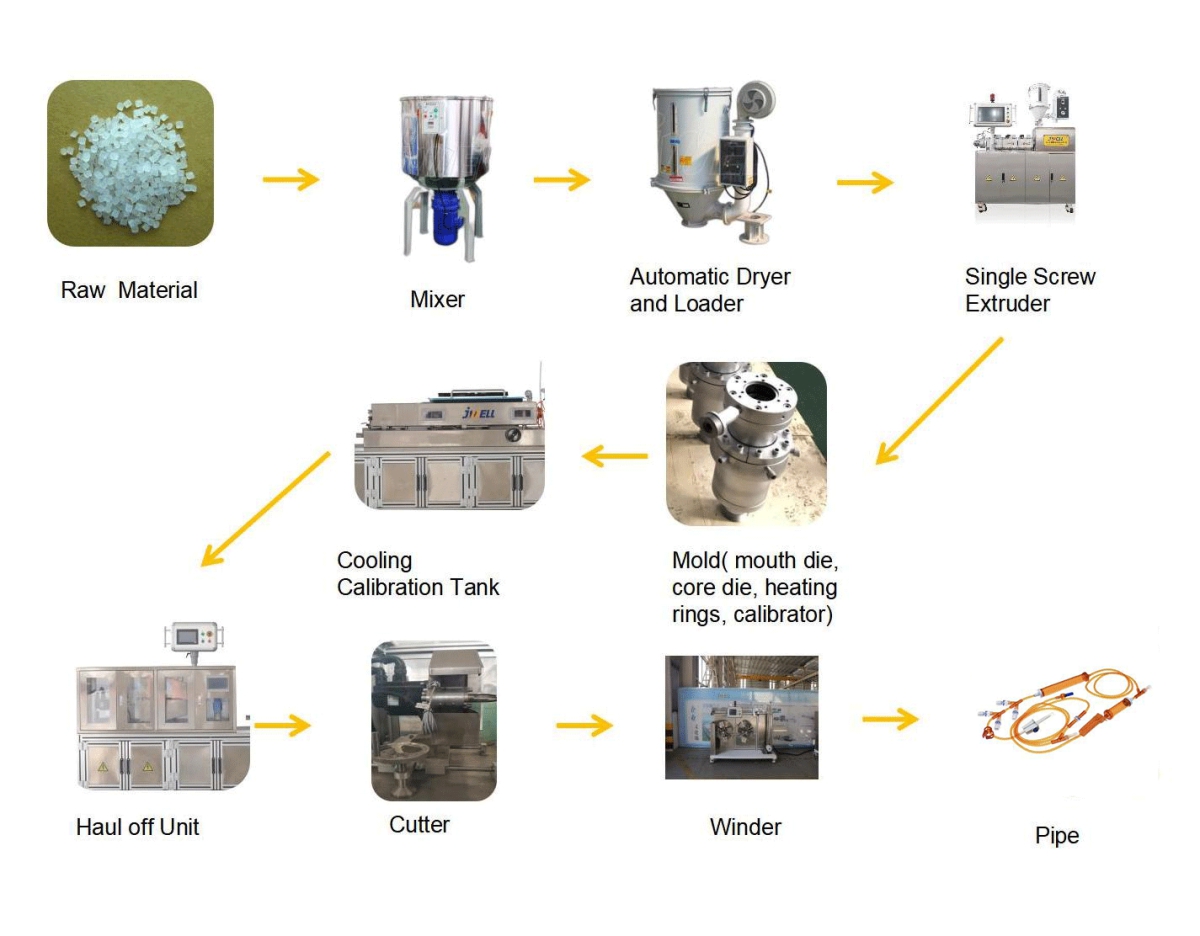

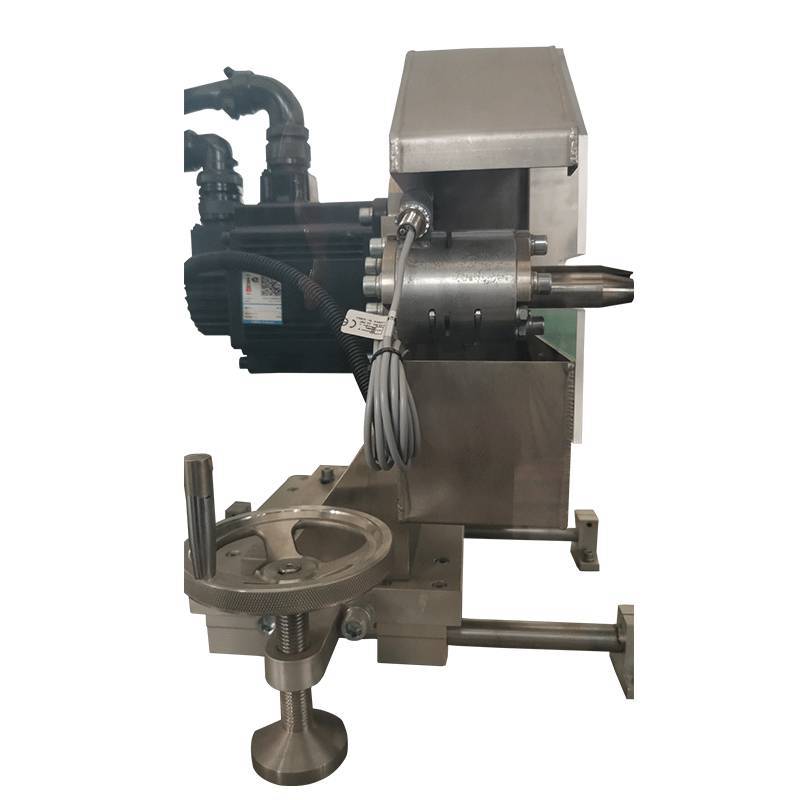

This series of equipment adopts two machines co extrusion structure based on characteristics of light- proof tube, which consists of three layers or two layers of coextrusion dedicated die, vacuum forming cooling tank, servo haul off and cutting machine and belt conveyor. Customer can choose online track outside diameter gauge. High efficient plastification and precise control of die and flow enable lightproof tube to bond well.This equipment with replacement of special mold can suitable for OD20 double-layer coextrusion flat mouth dripping bucket(inner layer thickness is 0.2mm ~ 0.25mm, the outer layer thickness is 0. 65mm ~ 0.7 mm), Avoid adjustment mold structure, inner and outer layer uniform distribution, mold flowing channel with no dead Angle, quick and convenient dismantle, improve production efficiency.
|
|
|
consumption KW/hr |
|
|
|
JWS45+30 |
45*28D 25*25D |
9 |
15～45 |
L9500*W2500*H1780 |
|
JWS50+30 |
50*28D 30*28D |
10 |
20～55 |
L13000*W2500*H1780 |
|
JWS55+30 |
55*28D 30*28D |
12 |
20～65 |
L13500*W2500*H1780 |

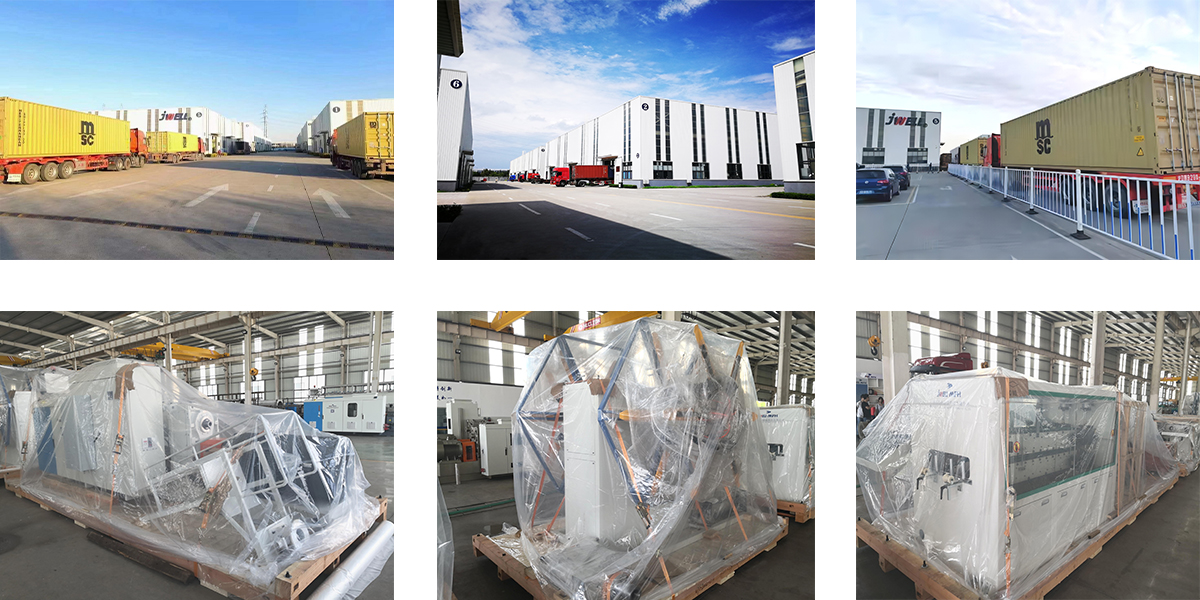

Shipment
