| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
It is mainly used in various medical hoses such as respiratory catheters, oxygen intubations, infusion tubes, etc.

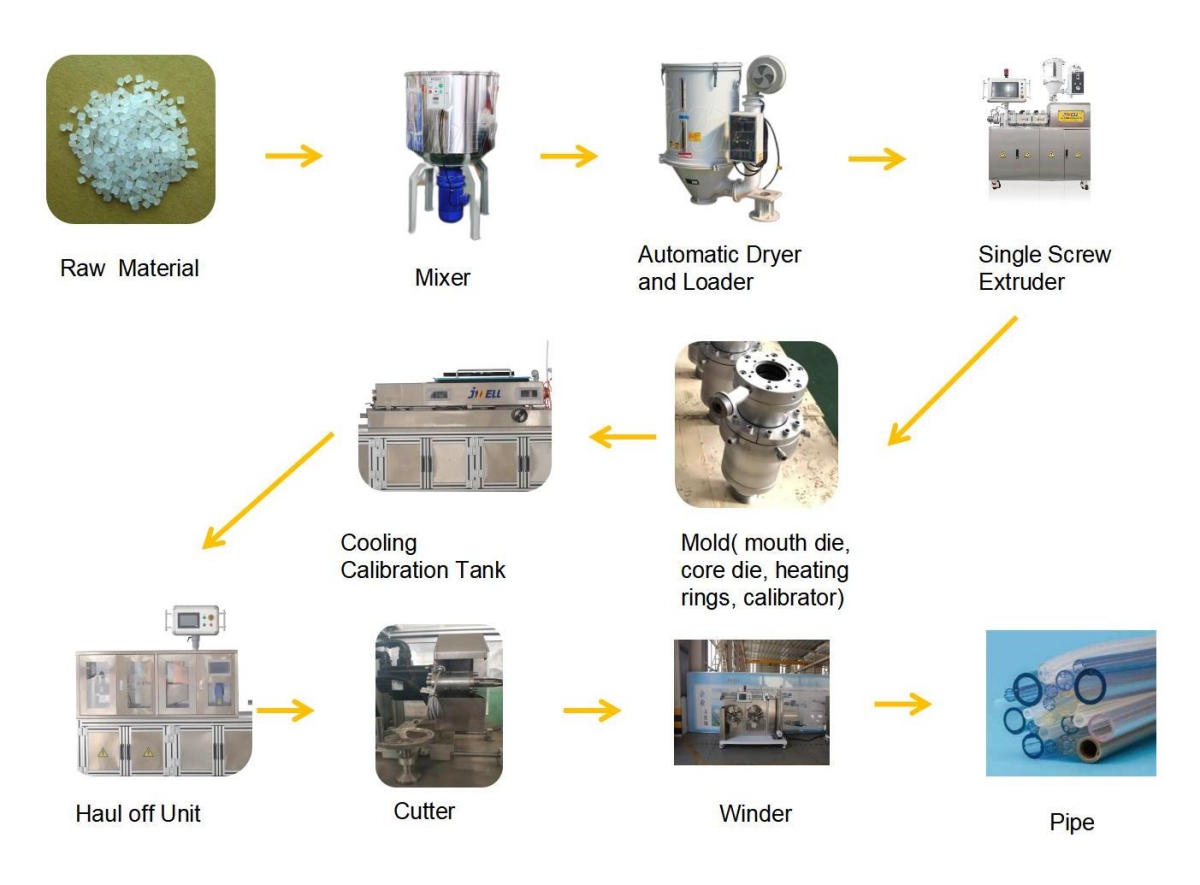

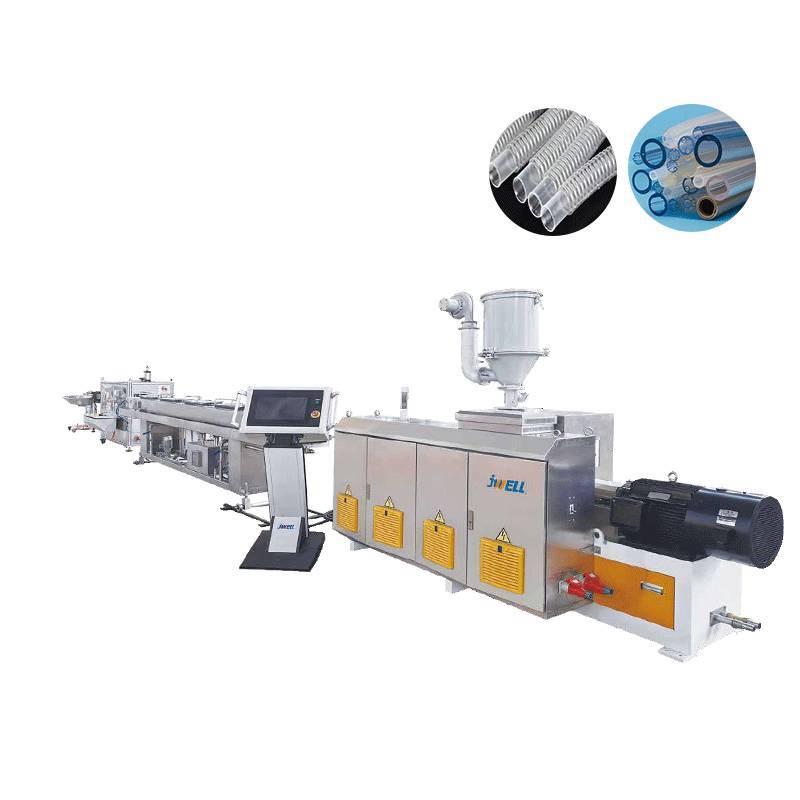

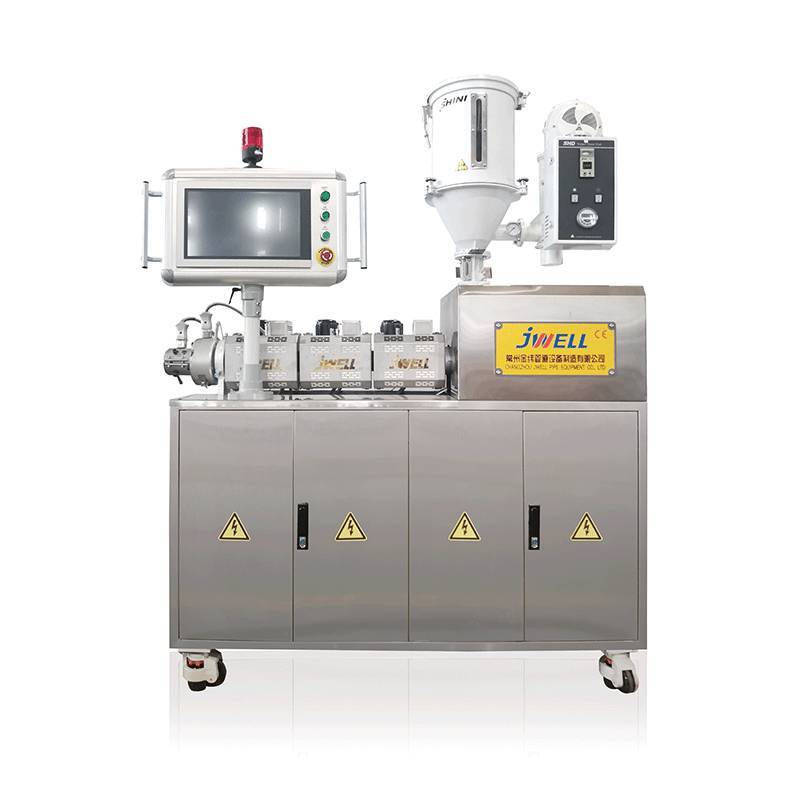

This series of equipment consists of single screw extrusion main machine, extrusion die, vacuum forming cooling tank, belt
haul-off unit and servo cutter. Equipment and product contact surface can be made of stainless steel(SUS316)or custom
designed to match customer's requirements.

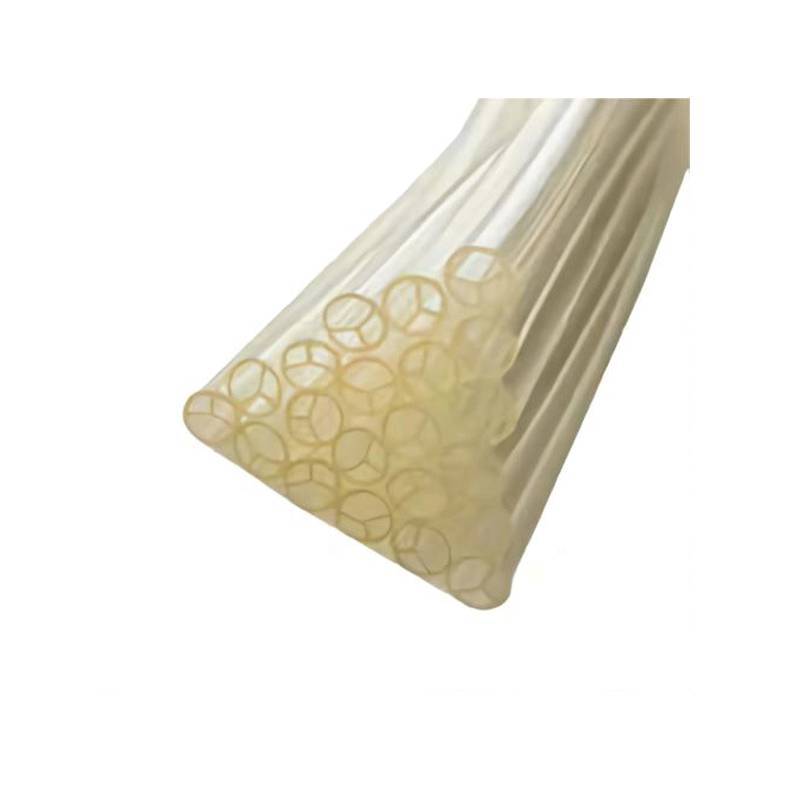

multi-cavity and single row tube, etc.
Outside diameter: 1.5- -20mm
Dimensional tolerance of outside diameter: +/-0.01, +/-0.02, +/-0.05mm
Wall thickness:0.1-3.0mm
Specifications
|
|
|
|
|
|
|
JWS25 |
25*25D |
2 |
2～5 |
L7500*W2000*H1780 |
|
JWS45 |
45*28D |
7 |
15～40 |
L9500*W2500*H1780 |
|
JWS55 |
55*28D（30D） |
8 |
20～55 |
L10500*W2500*H1780 |
|
JWS 65 |
65*28D（30D） |
11 |
40～90 |
L12600*W3000*H1780 |
