| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

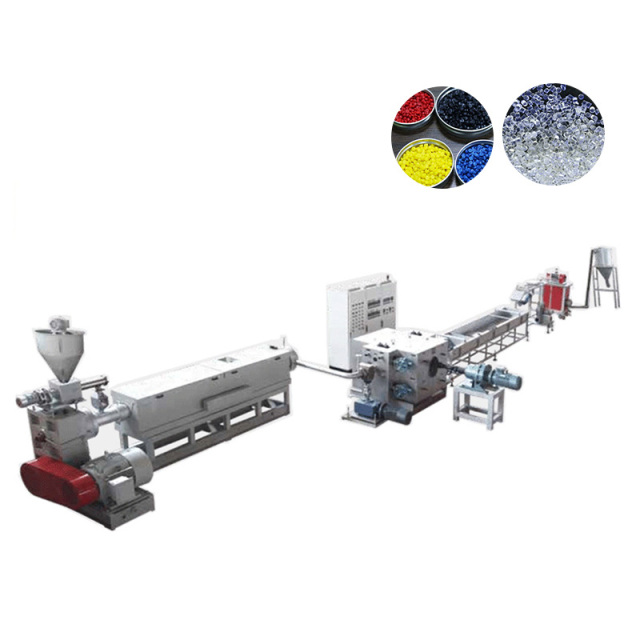

This series of production unit is mainly suitable for PET bottle flake granulation.
The screw adopts LTM low temperature mixing element, nitrided and hard chromium plating on the surface of the screw barrel, the main machine is equipped with vacuuming device, the outer casing is made of heat preservation cover structure, and the host adopts a heat preservation cover energy-saving structure, with coarse filter measuring head. Equipped with booster pump system and vertical sleeve cylinder double filter chamber. The mold adopts plate hanger type, the inner flow channel is formed by the machining center, the processing precision is high, the material flow speed is uniform, the motor directly drives the spindle, without the reducer transmission, the equipment in the process of operation has the characteristics of low noise, high efficiency, low failure rate, low production cost.
| MODEL | SCREW DIAMETER(MM) | L/D | SCREW SPEED (RPM) |
POWER OF MAIN MOTOR (KW) |
OUT PUT (KG/H) |
| JWT90 | 90 | 30/1 | 20-100 | 40-55 | 100-200 |
| JWT130 | 130 | 30/1 | 20-80 | 75-90 | 200-350 |
| JWT160 | 160 | 30/1 | 20-80 | 110-132 | 450-600 |
| JWT190 | 190 | 30/1 | 20-80 | 160-250 | 800-1100 |
Process steps
