| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
It is suitable for shredding and recycling of gates, plastic thick plates, building templates, plastic films and various hollow containers produced in the process of injection molding, blow molding and extrusion.

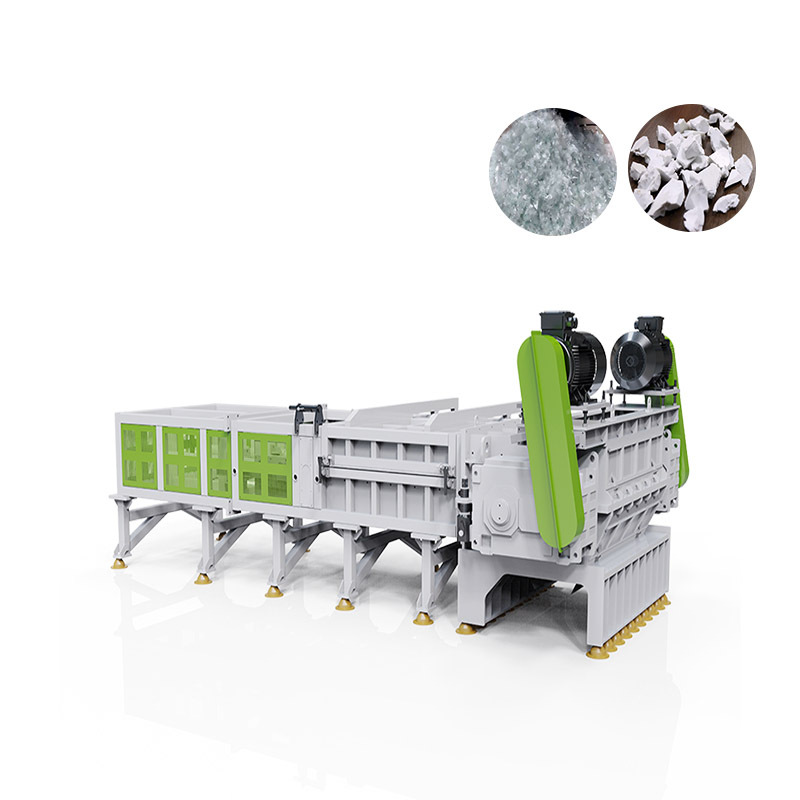

In order to meet different production requirements and crushing objects, DYUN has launched DYSSQ light shredder, which can be equipped with conveyor belt and crusher according to different feeding methods and reuse on site. The motor is equipped with overload protection device, using high speed cutter, so that higher output, lower noise, more energy-saving.
Specifications
| MODEL | CRUSH CHAMBER MAX. SIZE (MM) |
DRIVE POWER (KW) |
ROTOR BLADE QUANTITY (PIS) |
FIXED BLADE QUANTITY (PIS) |
ROTOR BLADE SWING DIAMETER (MM) |
ROTOR SPEED (RPM) |
| DYSSQ- 1000 | 850*1300*350 | 22*2 | 54 | 5 | Ф400 | 37/74 |
| DYSSQ- 1200 | 1050*1390*480 | 30*2 | 87 | 6 | Ф505 | 37 |
| DYSSQ- 1400 | 1200*1300*550 | 37*2 | 102 | 7 | Ф630 | 37 |
| DYSSQ- 1600 | 1500*1400*760 | 55*2 | 117 | 8 | Ф750 | 37 |
Process steps
