| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

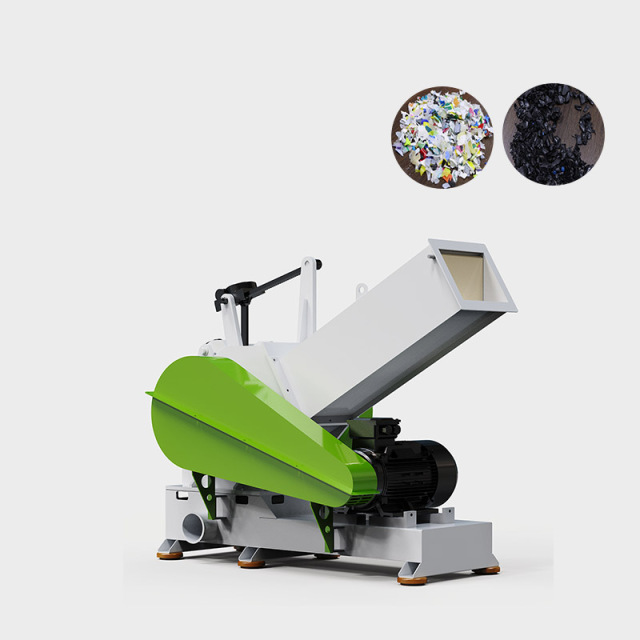

Jwell DYPS-X/M profile/WPC series special crusher can be used for crushing plastics, profiles and wood - plastic profiles, etc.

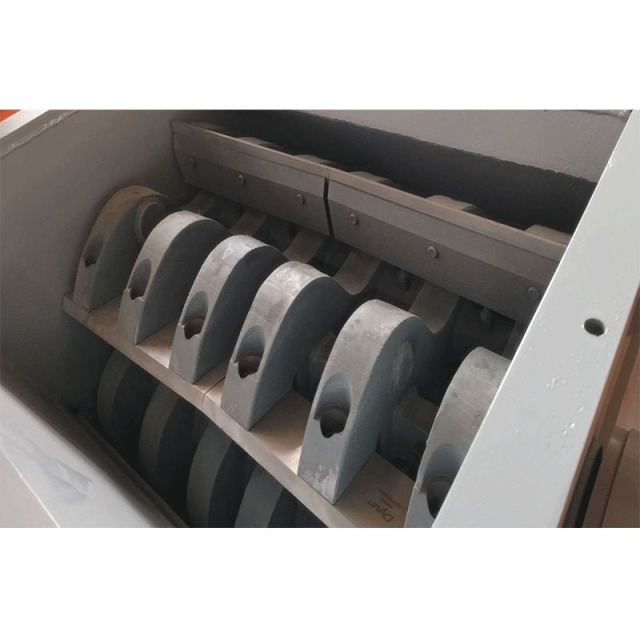

Different from traditional crushers, Dyun's specially designed DYPS-X materials of larger volume and quantity. The feeding hopper is almost parallel to the ground, making the feeding of long materials extremely simple and convenient. Because the rotor of the machine can automatically grasp the material to be broken. Therefore, there is no material clogging.
| MODEL | FEED MOUTH SIZE (MM) |
MAIN MOTOR POWER (KW) |
MOVING KNIFE QUANTITY (PIS) |
ROTOR EFFECTIVE WIDTH (MM) |
OUT PUT (KG/H) |
| DYPS-X 300 | 200*300 | 11-22 | 5 | 300 | 300 |
| DYPS-X 600 | 300*600 | 45-75 | 15 | 600 | 600 |
| DYPS-M400 | 240*400 | 22-37 | 24 | 400 | 350 |
| DYPS-M600 | 300*600 | 55-75 | 36 | 600 | 650 |
Process steps
