| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
● Suitable for producing 100ml-2000ml different size of Milk bottle,soy sauce bottle, yellow wine bottle. 200ml-2000ml different size of shampoo bottle,body wash bottle,detergent bottles and others Toiletries etc.
● Optional pearly luster layer co-extrusion system
● According to the product size. Select different cavity of die head
● According to the different material, optional JW-DB single station hydraulic screen-exchanger system

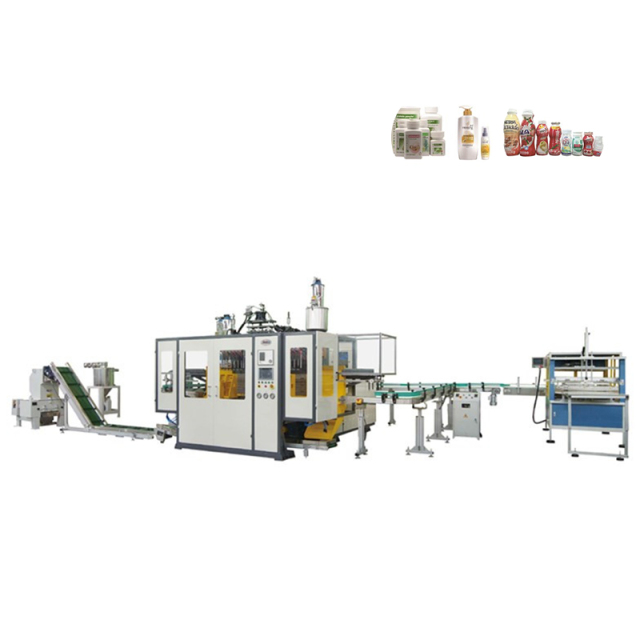

● According to customer's requirement. Optional auto-deflating online, scrap conveying on line, finished product conveying on line and others.

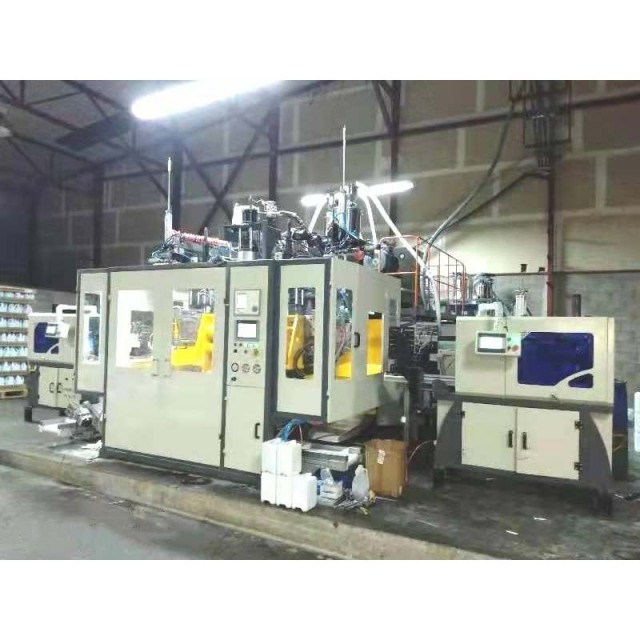

JWZ-BM series blow-molding machine are suitable for large-scale production of milk-bottle, drink-bottle, water-bottle, hot–filling bottle, medical containers, container used for cosmetic, spices, pesticides, lubricants and computer suppliers, it is also applicable for making small plastic toys.
In order to improve the efficiency, short the time that used for bottle forming, we equip with post-cooling device, so the products have good quality. According to the requirement of the customer, we can equip with other downstream equipments, so that the line can convey the finished products and trim waste-margin automatically.
| Model | Unit | BM02D |
| Max product volume | L | 2 |
| Dry cycle | Pc/h | 900*2 |
| Die head structure | Continuous type | |
| Main screw diameter | mm | 65 |
| Max plasticizing capacity (PE) | kg/h | 70 |
| Driving motor | Kw | 22 |
| Oil pump motor power（Servo） | Kw | 11 |
| Clamping force | KN | 40 |
| Space between platen | mm | 138-368 |
| Platen size W*H | mm | 286*330 |
| Max. mold size | mm | 300*350 |
| Platen moving stroke | mm | 420 |
| Heating power of die head | Kw | 6 |
| Machine dimension L*W*H | m | 3.0*1.9*2.4 |
| Machine weight | T | 5 |
| Total power | Kw | 45 |
Note:information listed above are for reference only, the production line can be designed by customer’s requirements.
